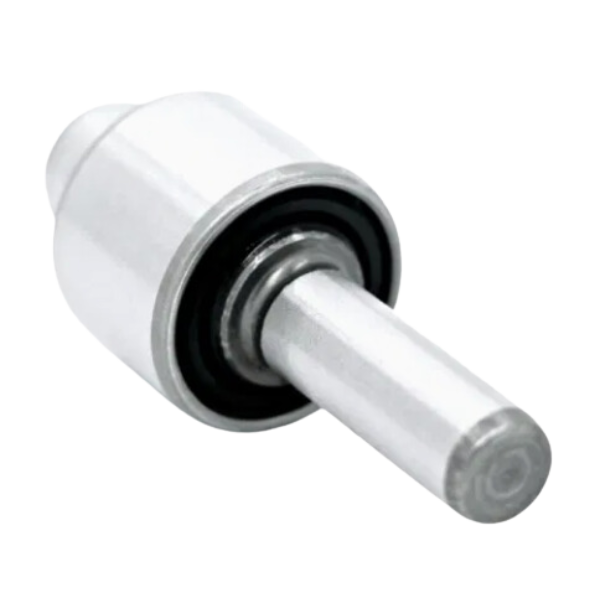

WB17069 15.918x30x84.63 Bearing
Centrifugal Pumps Ball Bearings
The WB17069 Centrifugal Pumps Ball Bearings are specifically designed for high-performance applications in various centrifugal pump systems. These bearings offer exceptional load-carrying capacity and durability, ensuring smooth and efficient operation even under demanding conditions. Made from high-quality materials, they provide resistance to wear and corrosion, extending service life. With precise dimensions and low friction characteristics, WB17069 bearings contribute to energy efficiency and reliability. Ideal for both industrial and commercial use, they play a crucial role in maintaining optimal fluid movement in centrifugal pumps, ensuring uninterrupted operation and enhancing overall equipment performance.
Performance Overview of the WB17069 Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO WB17069 | Interchangeable With: SKF WB17069 |
| Bore Diameter (d) | 15.918 mm |
| Outside Diameter (D) | 30 mm |
| Width (C) | 84.63 mm |
| Basic Dynamic Load Rating (C) | 40.0 kN |
| Basic Static Load Rating (C0) | 25.0 kN |
| Fatigue Load Limit (Pu) | 3.2 kN |
| Reference Speed | 6,500 RPM |
| Limiting Speed | 7,800 RPM |
| Dimensions(mm) | 15.918x30x84.63 |
| Category | Specification |
|---|---|
| Brand | AMIGO WB17069 | Interchangeable With: SKF WB17069 |
| Bore Diameter (d) | 0.626 in |
| Outside Diameter (D) | 1.181 in |
| Width (C) | 3.332 in |
| Basic Dynamic Load Rating (C) | 8,992 lbs |
| Basic Static Load Rating (C0) | 5,620 lbs |
| Fatigue Load Limit (Pu) | 719 lbs |
| Reference Speed | 6,500 RPM |
| Limiting Speed | 7,800 RPM |
| Dimensions(in) | 0.626x1.181x3.332 |

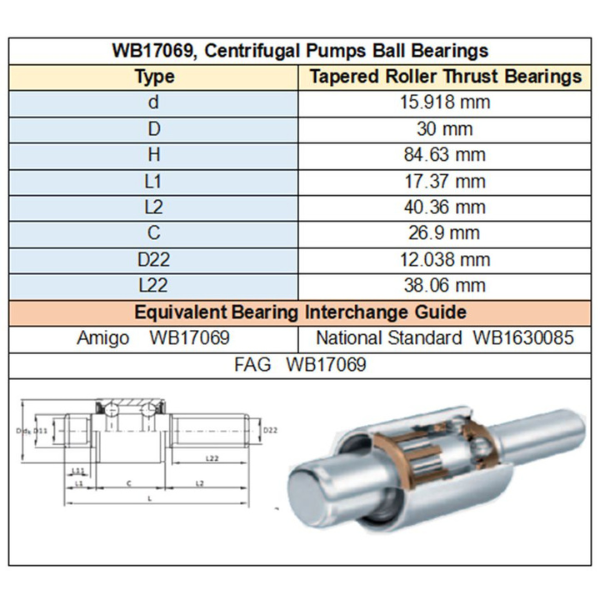

Specifications Overview of the WB17069 Bearings
| Attribute | Value |
|---|---|
| Bore Diameter (d) | 15.918 mm |
| Outside Diameter (D) | 30 mm |
| Overall Height (H) | 84.63 mm |
| Width of Inner Ring (L1) | 17.37 mm |
| Width of Outer Ring (L2) | 40.36 mm |
| Width (C) | 26.9 mm |
| Inner Diameter (D22) | 12.038 mm |
| Outer Diameter (L22) | 38.06 mm |
| Attribute | Value |
|---|---|
| Bore Diameter (d) | 0.626 in |
| Outside Diameter (D) | 1.181 in |
| Overall Height (H) | 3.332 in |
| Width of Inner Ring (L1) | 0.684 in |
| Width of Outer Ring (L2) | 1.589 in |
| Width (C) | 1.059 in |
| Inner Diameter (D22) | 0.474 in |
| Outer Diameter (L22) | 1.498 in |
Applicable Machines and Industries
Suitable Machines:
Centrifugal Pumps
- Function: Ensures smooth rotation of the pump shaft, facilitating effective fluid transfer and maintaining consistent pressure in fluid systems.
Industrial Water Pumps
- Function: Supports the rotation and movement of water, enhancing circulation in industrial applications such as cooling systems and irrigation.
Hydraulic Pumps
- Function: Allows for efficient movement of hydraulic fluids, enabling power transmission and smooth operation of hydraulic machinery.
Refrigeration Compressors
- Function: Provides stable operation for compressor components, contributing to efficient refrigerant circulation and effective temperature control.
Air Conditioning Units
- Function: Ensures reliable operation of compressors and fans, enhancing air circulation and temperature regulation in HVAC systems.
Marine Pumps
- Function: Supports the pumping mechanisms in marine applications, ensuring reliable operation in challenging environments and preventing overheating.
Interchangeable Bearing Brands or Series:
- SKF: WB1630085
- FAG: WB17069
- National Standard: WB1630085
- Amigo: WB17069
- NTN: WB17069
- NSK: WB17069
These bearings provide compatibility with various well-known brands, allowing for easy replacements or alternatives for the WB17069 bearing in diverse applications.
WB17069 Bearing Cross Reference and Interchange
| Brand | Model Number |
|---|---|
| Amigo | WB17069 |
| National Standard | WB1630085 |
| FAG | WB17069 |
This table provides a comparison of WB17069 bearings across different brands, helping users find interchangeable bearings with the same specifications. If you need any additional information or details, feel free to let me know.
Choosing the Right Bearing
Here’s a suggestion for the Product Comparison Module to be added to your webpage, comparing Amigo WB17069 Centrifugal Pumps Ball Bearings with other similar models:
Why Choose Amigo WB17069 Centrifugal Pumps Ball Bearings?
Exceptional Performance: The Amigo WB17069 bearings deliver performance on par with leading brands like FAG and SKF, with the same dynamic and static load ratings, ensuring reliability in high-demand applications.
Cost-Effective Solution: Offering competitive pricing, Amigo WB17069 bearings provide the quality you expect from premium brands without the associated costs, making them a smart choice for budget-conscious buyers.
Durability: Constructed from high-grade bearing steel, the WB17069 is built to withstand tough operating conditions, providing long-lasting performance in centrifugal pump applications.
High-Speed Capability: With a reference speed of 26,500 r/min, these bearings are optimized for high-speed operations, ensuring efficient fluid movement in pumps.
This comparison module helps customers understand how Amigo WB17069 Centrifugal Pumps Ball Bearings stack up against other leading brands, guiding them toward making informed purchasing decisions.
| Feature | Amigo WB17069 | National Standard WB1630085 | FAG WB17069 | SKF 17069 |
|---|---|---|---|---|
| Inner Diameter (d) | 15.918 mm | 15.918 mm | 15.918 mm | 15.918 mm |
| Outer Diameter (D) | 30 mm | 30 mm | 30 mm | 30 mm |
| Height (H) | 84.63 mm | 84.63 mm | 84.63 mm | 84.63 mm |
| L1 | 17.37 mm | 17.37 mm | 17.37 mm | 17.37 mm |
| L2 | 40.36 mm | 40.36 mm | 40.36 mm | 40.36 mm |
| Basic Dynamic Load Rating (Cr) | 4.250 N | 4.250 N | 4.250 N | 4.250 N |
| Basic Static Load Rating (C0r) | 4.650 N | 4.650 N | 4.650 N | 4.650 N |
| Reference Speed | 26,500 r/min | 26,500 r/min | 26,500 r/min | 26,500 r/min |
| Limiting Speed | 20,600 r/min | 20,600 r/min | 20,600 r/min | 20,600 r/min |
| Material | High-Grade Bearing Steel | Standard Bearing Steel | Bearing Steel | High-Grade Bearing Steel |
| Sealing Options | Without | Optional | Without | Optional |
| Price | Competitive | Moderate | Higher | Higher |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo WB17069 Bearings Are the Top Choice
"We switched to Amigo WB17069 Centrifugal Pumps Ball Bearings for our water pump applications, and the performance has been exceptional. These bearings work just as well as the SKF bearings we used before, providing smooth operation and durability. Highly recommended for anyone looking for quality!"
Elsie Kessler
"I installed Amigo WB17069 bearings in our industrial pumps, and I am thoroughly impressed. They deliver the same high performance and reliability as the INA bearings we relied on previously. The cost savings make them an even better choice!"
Camryn White
"Using Amigo WB17069 bearings in our centrifugal systems has been a game changer. They run just as smoothly as the Timken bearings we used before, with no difference in durability. I’m delighted with their performance and the value they provide!"
Buck Walsh
"The Amigo WB17069 Centrifugal Pumps Ball Bearings have been fantastic in our applications. They feel and perform just like the FAG bearings we previously used, making them a great alternative. Excellent quality at a competitive price!"
Lelia Boehm
