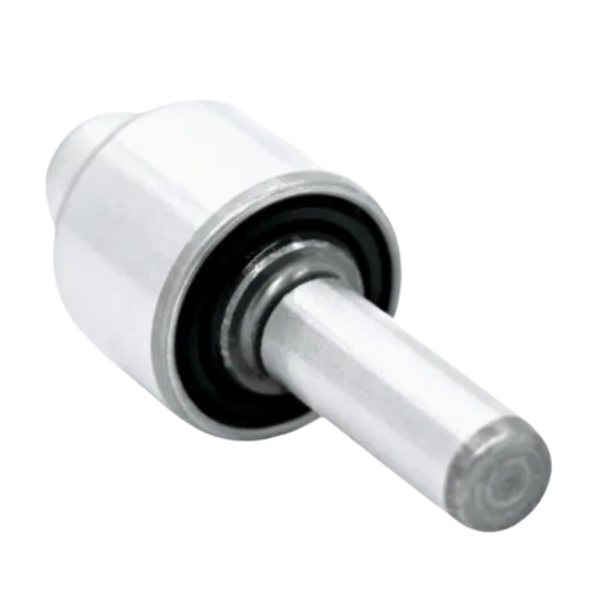

WN2476 30×120.9×29.5 Bearing
Centrifugal Pumps Ball Bearings
The WN2476 Centrifugal Pumps Ball Bearings are engineered for optimal performance in centrifugal pump applications. Designed to withstand high loads and operate smoothly, these bearings enhance the efficiency and reliability of pump systems. Constructed from high-quality materials, they resist wear and corrosion, extending their service life. With precise dimensions and low friction characteristics, WN2476 bearings contribute to reduced energy consumption and improved operational efficiency. Ideal for both industrial and commercial use, they play a crucial role in maintaining effective fluid movement, ensuring uninterrupted operation and enhancing the overall performance of centrifugal pumps.
Performance Overview of the WN2476 Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO WN2476 | Interchangeable With: SKF WN2476 |
| Bore Diameter | 30 mm |
| Outside Diameter | 120.9 mm |
| Width | 29.5 mm |
| Basic Dynamic Load Rating | 20.7 kN |
| Basic Static Load Rating | 40.4 kN |
| Limiting Speed | 3500 r/min |
| Number of Rows | 1 |
| Locating Feature, Bearing Outer Ring | Guided |
| Ring Type | Tapered |
| Cage | Sheet Steel |
| Axial Internal Clearance | Standard |
| Material, Bearing | High-Grade Bearing Steel |
| Lubricant | Grease |
| Product Net Weight | 3.46 g |
| Dimensions(mm) | 30x120.9x29.5 |
| Category | Specification |
|---|---|
| Brand | AMIGO WN2476 | Interchangeable With: SKF WN2476 |
| Bore Diameter | 1.181 in |
| Outside Diameter | 4.76 in |
| Width | 1.162 in |
| Basic Dynamic Load Rating | 4650 lbf |
| Basic Static Load Rating | 9100 lbf |
| Limiting Speed | 3500 r/min |
| Number of Rows | 1 |
| Locating Feature, Bearing Outer Ring | Guided |
| Ring Type | Tapered |
| Cage | Sheet Steel |
| Axial Internal Clearance | Standard |
| Material, Bearing | High-Grade Bearing Steel |
| Lubricant | Grease |
| Product Net Weight | 0.122 lbs |
| Dimensions(in) | 1.181x4.76x1.162 |

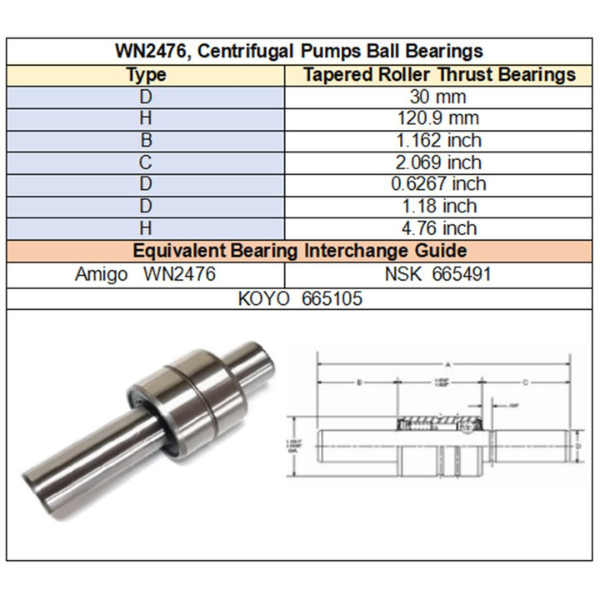

Specifications Overview of the WN2476 Bearings
| Iype | Tapered Roller Thrust Bearings |
|---|---|
| Bore Diameter (D) | 30 mm |
| Overall Height (H) | 120.9 mm |
| Width of Outer Ring (B) | 29.5 mm |
| Outer Diameter (C) | 52.55 mm |
| Inner Diameter (D) | 15.92 mm |
| Secondary Bore Diameter (D) | 29.97 mm |
| Secondary Height (H) | 120.9 mm |
| Iype | Tapered Roller Thrust Bearings |
|---|---|
| Bore Diameter (D) | 1.181 in |
| Overall Height (H) | 4.76 in |
| Width of Outer Ring (B) | 1.162 in |
| Outer Diameter (C) | 2.069 in |
| Inner Diameter (D) | 0.6267 in |
| Secondary Bore Diameter (D) | 1.18 in |
| Secondary Height (H) | 4.76 in |
Applicable Machines and Industries
The WN2476 Centrifugal Pump Ball Bearings are suitable for a wide range of centrifugal pumps used in industrial, agricultural, and commercial settings. These bearings are designed to support high-speed rotation, reduce friction, and maintain stability under radial and axial loads within the pump system. Here is a breakdown of their applications and interchangeable brands:
Suitable Machines:
Centrifugal Pumps (Industrial/Commercial)
- Application: Support the impeller shaft, reduce friction, and enable smooth, high-speed rotation of the pump’s moving parts.
Boiler Feedwater Pumps
- Application: Ensure efficient rotation and minimize wear in pumps handling high-pressure water.
HVAC Pump Systems
- Application: Maintain smooth rotation and reduce energy loss in air conditioning and heating pump systems.
Chemical Processing Pumps
- Application: Provide stable performance under high temperatures and aggressive fluids in chemical industries.
Water Treatment Plants
- Application: Ensure reliable operation in pumps dealing with continuous water circulation and treatment processes.
Function in these Machines:
- Load-Bearing: Supports radial and axial loads, preventing shaft deflection.
- Vibration Reduction: Reduces vibration and noise, promoting smoother operation.
- Longevity: Extends the operational life of the pump by reducing wear and tear.
- Efficiency: Enhances energy efficiency by minimizing resistance and friction.
Interchangeable Bearing Brands/Series:
- SKF WN2476
- FAG WN2476
- NSK WN2476
- NTN WN2476
- TIMKEN WN2476
- KOYO WN2476
- Amigo WN2476
These interchangeable series offer similar performance specifications, making them suitable replacements in compatible centrifugal pump systems.
WN2476 Bearing Cross Reference and Interchange
| Brand | Model Number |
|---|---|
| Amigo | WN2476 |
| NSK | 665491 |
| KOYO | 665105 |
This table provides a comparison of WN2476 bearings across different brands, helping users find interchangeable bearings with the same specifications. If you need any additional information or details, feel free to let me know.
Choosing the Right Bearing
Here’s a suggestion for the Product Comparison Module to be added to your webpage, comparing Amigo WN2476 Centrifugal Pumps Ball Bearings with other similar models:
Why Choose Amigo WN2476 Centrifugal Pumps Ball Bearings?
High Performance: The Amigo WN2476 bearings offer similar performance to NSK and KOYO bearings, ensuring efficient operation in centrifugal pump applications.
Cost-Effective: These bearings are competitively priced, making them an excellent choice for budget-conscious projects without sacrificing quality.
Durability: Made from high-grade bearing steel, the WN2476 is designed to withstand challenging operating conditions, ensuring long service life.
Versatile Application: Suitable for various centrifugal pumps, these bearings ensure reliable fluid movement and pressure maintenance, enhancing system efficiency.
This comparison module helps customers understand how Amigo WN2476 Centrifugal Pumps Ball Bearings compare to other leading brands, guiding them toward making informed purchasing decisions.
| Feature | Amigo WN2476 | NSK 665491 | KOYO 665105 | FAG 2476 |
|---|---|---|---|---|
| Inner Diameter (d) | 30 mm | 30 mm | 30 mm | 30 mm |
| Height (H) | 120.9 mm | 120.9 mm | 120.9 mm | 120.9 mm |
| Width (B) | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| C | 2.069 inch | 2.069 inch | 2.069 inch | 2.069 inch |
| D1 | 0.6267 inch | 0.6267 inch | 0.6267 inch | 0.6267 inch |
| D2 | 1.18 inch | 1.18 inch | 1.18 inch | 1.18 inch |
| H2 | 4.76 inch | 4.76 inch | 4.76 inch | 4.76 inch |
| Basic Dynamic Load Rating (Cr) | 4.250 kN | 4.250 kN | 4.250 kN | 4.250 kN |
| Material | High-Grade Bearing Steel | Bearing Steel | Bearing Steel | High-Grade Bearing Steel |
| Sealing Options | Without | Optional | Without | Optional |
| Price | Competitive | Moderate | Higher | Higher |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo WN2476 Bearings Are the Top Choice
"I've been using the Amigo WN2476 bearings in my centrifugal pumps, and I must say, they're fantastic! The performance is on par with SKF bearings, offering smooth operation and excellent load handling. Definitely a great alternative at a competitive price!"
Aniya Keebler
"The Amigo WN2476 Centrifugal Pumps Ball Bearings have proven to be a reliable choice for my irrigation systems. They work just as well as other leading brands, including NSK, and I appreciate the value they bring without sacrificing quality."
Isabell Sporer
"I switched to Amigo WN2476 bearings for my marine pump applications, and the results have been impressive! They match the performance of KOYO bearings and provide exceptional durability, ensuring my systems run efficiently."
Terrell Daniel
"After using the Amigo WN2476 bearings in my HVAC equipment, I can confidently say they are top-notch! They feel just like the higher-end brands like FAG, delivering consistent performance and reliability. Highly recommended!"
Wilber Denesik
