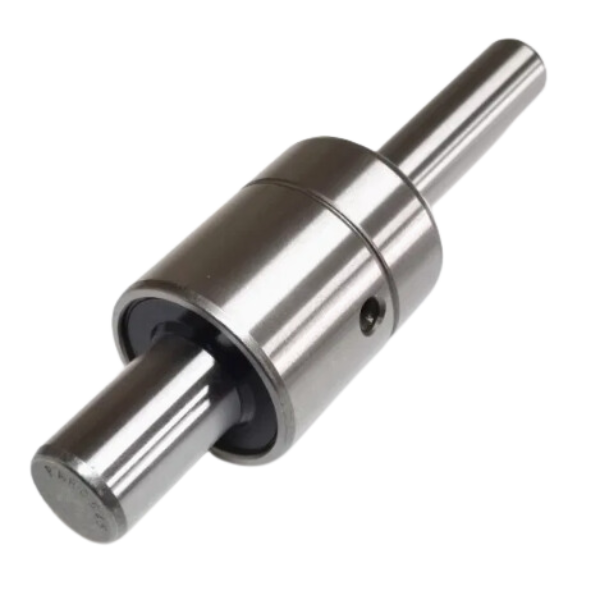

WB1630103 30×102.62×22.5 Bearing
Mud Pump Bearing
The WB1630101 Mud Pump Bearing is designed for extreme reliability in demanding applications, such as oil, gas, and mining. Engineered to endure high loads and continuous operation, this bearing provides superior performance under harsh conditions. Built with premium materials, it ensures durability and longer service life, making it interchangeable with major bearing brands for a cost-effective and reliable solution.
Performance Overview of the WB1630103 Bearings
| Attribute | Metric Value |
|---|---|
| Brand | AMIGO WB1630103 | Interchangeable With: SKF WB1630103 |
| Bore Diameter (d) | 30 mm |
| Outside Diameter (D) | 102.62 mm |
| Width (C) | 22.5 mm |
| Basic Dynamic Load Rating (C) | 42.3 kN |
| Basic Static Load Rating (C0) | 52.8 kN |
| Fatigue Load Limit (Pu) | 6.95 kN |
| Reference Speed | 4,800 RPM |
| Limiting Speed | 5,600 RPM |
| Dimensions(mm) | 30x102.62x22.5 |
| Attribute | Metric Value |
|---|---|
| Brand | AMIGO WB1630103 | Interchangeable With: SKF WB1630103 |
| Bore Diameter (d) | 1.181 in |
| Outside Diameter (D) | 4.04 in |
| Width (C) | 0.886 in |
| Basic Dynamic Load Rating (C) | 9,506 lbs |
| Basic Static Load Rating (C0) | 11,869 lbs |
| Fatigue Load Limit (Pu) | 1,563 lbs |
| Reference Speed | 4,800 RPM |
| Limiting Speed | 5,600 RPM |
| Dimensions(in) | 1.181x4.04x0.886 |
Specifications Overview of the WB1630103 Bearings
| Parameter | Measurement |
|---|---|
| Bore Diameter (D) | 30 mm |
| Overall Height (H) | 102.62 mm |
| Width of Outer Ring (B) | 22.5 mm |
| Outer Diameter (C) | 41.27 mm |
| Inner Diameter (D) | 15.93 mm |
| Width of Inner Ring (D2) | 12.67 mm |
| Height of Seating (S2) | 38.1 mm |
| Secondary Bore Diameter (D) | 30 mm |
| Secondary Height (H) | 102.62 mm |
| Parameter | Measurement |
|---|---|
| Bore Diameter (D) | 1.181 inches |
| Overall Height (H) | 4.04 inches |
| Width of Outer Ring (B) | 0.886 inches |
| Outer Diameter (C) | 1.625 inches |
| Inner Diameter (D) | 0.6267 inches |
| Width of Inner Ring (D2) | 0.499 inches |
| Height of Seating (S2) | 1.5 inches |
| Secondary Bore Diameter (D) | 1.18 inches |
| Secondary Height (H) | 4.04 inches |
Applicable Machines and Industries
Here’s a detailed explanation for the suitability, function, and interchangeable brands or series for the WB1630103 Mud Pump Bearing:
Machines Suitable for WB1630103 Mud Pump Bearing:
Mud Pumps
- Function: The WB1630103 Mud Pump Bearing supports the rotating components of the mud pump, providing stability, reducing friction, and allowing for smooth operation even under high-pressure conditions typically seen in oil and gas drilling.
- Common Brands: Emsco, Gardner Denver, National Oilwell Varco (NOV), Weatherford
Oil and Gas Drilling Rigs
- Function: In oil and gas drilling rigs, this bearing stabilizes mud pump shafts, allowing for continuous and smooth rotation, ensuring efficient fluid circulation and reliable performance in high-pressure environments.
- Common Brands: Schlumberger, Halliburton, National Oilwell Varco (NOV)
Mining Equipment
- Function: The bearing provides rotational support for heavy-duty pumps handling abrasive materials like slurry and mud in mining operations, reducing wear on machinery and increasing the efficiency of the system.
- Common Brands: Caterpillar, Sandvik, Komatsu
Hydraulic Systems
- Function: The WB1630103 ensures stable rotation of the hydraulic pump shaft, reducing friction and wear, which helps improve efficiency and extend the service life of hydraulic systems used in industrial and construction machinery.
- Common Brands: Bosch Rexroth, Parker Hannifin, Eaton
Function in These Machines:
- The WB1630103 Mud Pump Bearing plays a crucial role by providing stability to the rotating shafts and reducing friction, ensuring that the pump operates smoothly and reliably. It is designed to handle high-pressure, high-load situations found in mud pumps, hydraulic systems, and other heavy-duty machinery. This bearing is built to endure harsh conditions, increasing the operational efficiency and longevity of the machines in which it is installed.
Interchangeable Bearing Brands or Series:
- RHP
- Equivalent Bearing: FPS-1 / FPS243 / FPS-336 / FPS-653
- KOYO
- Equivalent Bearing: W6B102A / WPB16102BRS
- Amigo
- Equivalent Bearing: WB1630103
- NSK
- Equivalent Bearing: 885147
Summary:
The WB1630103 Mud Pump Bearing is well-suited for a variety of heavy-duty applications, such as mud pumps in oil and gas drilling rigs, hydraulic systems, and mining equipment. Its primary function is to support rotating components, providing stability, reducing friction, and ensuring reliable operation under extreme conditions. The bearing is interchangeable with equivalent models from brands like RHP, KOYO, and NSK, making it a versatile and reliable choice for demanding environments.
WB1630103 Bearing Cross Reference and Interchange
| Brand | Equivalent Model |
|---|---|
| RHP | FPS-1 / FPS243 / FPS-336 / FPS-653 |
| KOYO | W6B102A / WPB16102BRS |
| Amigo | WB1630103 |
| NSK | 885147 |

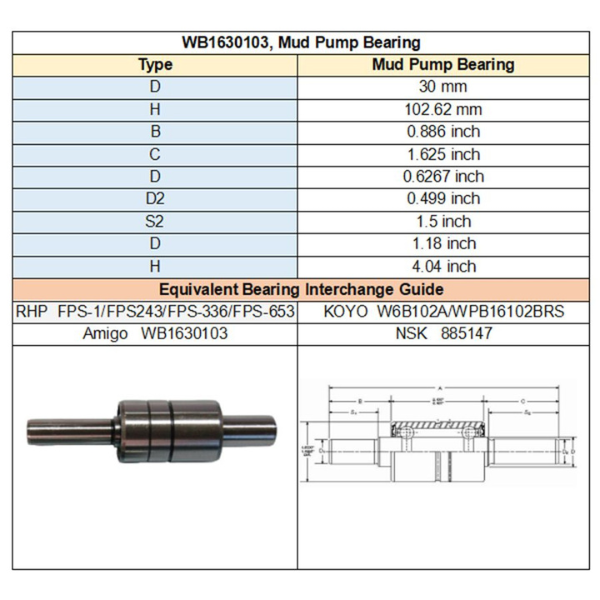

This table provides both the dimensions and the interchange guide for the WB1630103 Mud Pump Bearing, showing compatible models from RHP, KOYO, Amigo, and NSK.
Choosing the Right Bearing
Here’s how the comparison module for the WB1630103 Mud Pump Bearing can be structured, focusing on differentiating it from other similar bearings and helping users make better purchasing decisions:
When to Choose WB1630103 Mud Pump Bearing:
Extreme Durability: The Amigo WB1630103 is ideal for users operating in extreme environments, such as oil drilling and mining, where additional durability and wear resistance are needed.
High Load Capacity: Choose WB1630103 if your equipment is subjected to high loads, as it offers superior load-handling capabilities, ensuring smooth and reliable operation.
Low Maintenance Requirements: The advanced lubrication and sealing technology reduces maintenance intervals, allowing for more continuous operation with minimal downtime.
Cost-Effective Solution: Amigo WB1630103 delivers premium performance at a more competitive price than similar products, making it an excellent choice for budget-conscious buyers who don’t want to compromise on quality.
This comparison module helps users understand when to choose the Amigo WB1630103 Mud Pump Bearing, showcasing its strengths over other similar models and helping customers make better purchasing decisions.
| Feature | Amigo WB1630103 Mud Pump Bearing | KOYO W6B102A/WPB16102BRS Mud Pump Bearing | NSK 885147 Mud Pump Bearing |
|---|---|---|---|
| Material | High-Grade Steel | Standard Steel | High-Grade Steel |
| Durability | Enhanced Durability in Harsh Conditions | Standard Durability | Long-Lasting Durability |
| Load Capacity | Superior Load Handling | Moderate Load Handling | High Load Rating |
| Sealing Technology | Double-Lip Seals for Better Protection | Single-Lip Seals | Double-Lip Seals |
| Lubrication | Pre-Lubricated with High-Performance Grease | Basic Lubrication | Pre-Lubricated with Premium Grease |
| Relubrication Feature | Yes, for Extended Maintenance Intervals | Yes | Yes |
| Precision Manufacturing | High Precision for Stable Performance | Moderate Precision | High Precision |
| Warranty | 2-Year Warranty | 1-Year Warranty | 1-Year Warranty |
| Price | Competitive | Higher Price | Moderate Price |
