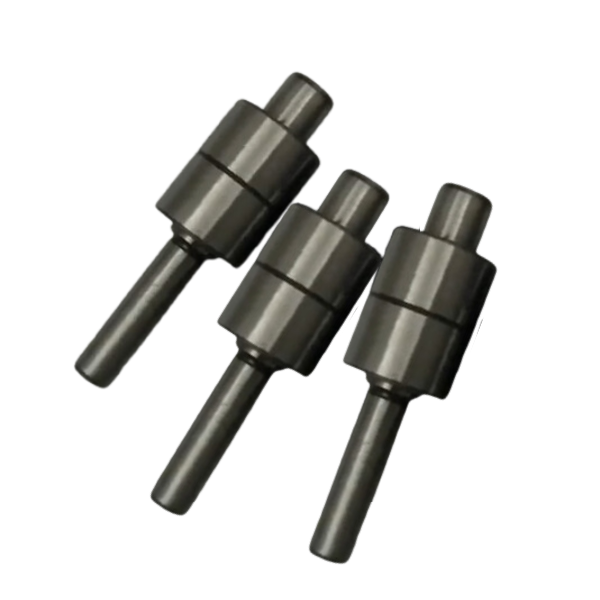

WB1630105.5 30×105.51×23.54 Bearing
Mud Pump Bearing
The WB1630105.5 Mud Pump Bearing is a premium solution designed for demanding applications in the oil, gas, and mining industries. Engineered for heavy-duty mud pumps, it delivers exceptional durability and load-carrying capacity. Made from high-grade materials, it withstands harsh environments, ensuring smooth operation and extended service life. This bearing is interchangeable with leading brands, making it an ideal choice for reliable performance.
Performance Overview of the WB1630105.5 Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO WB1630105.5 | Interchangeable With: SKF WB1630105.5 |
| Bore Diameter | 30 mm |
| Outside Diameter | 105.5 mm |
| Contact Type | Mud Pump Bearing |
| Number of Rows | Single Row |
| Ring Type | Cylindrical |
| Matched Arrangement | Yes |
| Universal Matching Bearing | Yes |
| Material, Bearing | High-Grade Steel |
| Coating | Anti-Corrosion Coating |
| Sealing | Yes |
| Sealing Type | Double-Lip Seals |
| Lubricant | High-Performance Grease |
| Relubrication Feature | Yes |
| Dimensions(mm) | 30x105.51x23.54 |
| Category | Specification |
|---|---|
| Brand | AMIGO WB1630105.5 | Interchangeable With: SKF WB1630105.5 |
| Bore Diameter | 1.181 inches |
| Outside Diameter | 4.153 inches |
| Contact Type | Mud Pump Bearing |
| Number of Rows | Single Row |
| Ring Type | Cylindrical |
| Matched Arrangement | Yes |
| Universal Matching Bearing | Yes |
| Material, Bearing | High-Grade Steel |
| Coating | Anti-Corrosion Coating |
| Sealing | Yes |
| Sealing Type | Double-Lip Seals |
| Lubricant | High-Performance Grease |
| Relubrication Feature | Yes |
| Dimensions(mm) | 1.181x4.153x0.927 |
Specifications Overview of the WB1630105.5 Bearings

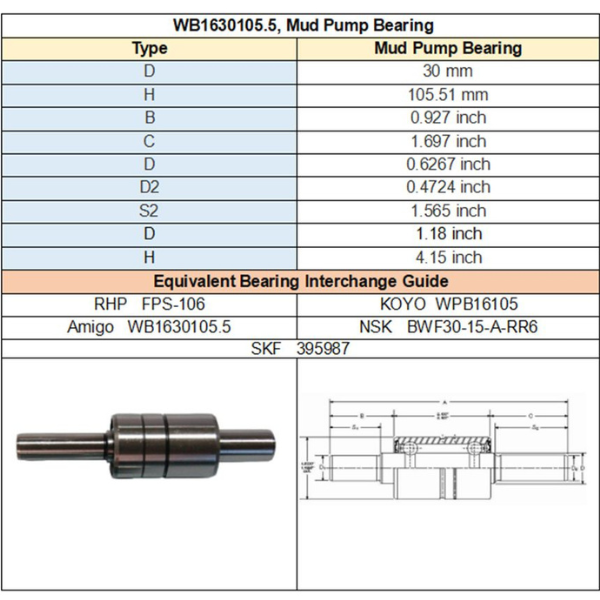

| Parameter | Measurement |
|---|---|
| Bore Diameter (D) | 30 mm |
| Overall Height (H) | 105.51 mm |
| Width of Outer Ring (B) | 23.54 mm |
| Outer Diameter (C) | 43.1 mm |
| Inner Diameter (D) | 15.92 mm |
| Width of Inner Ring (D2) | 11.99 mm |
| Height of Seating (S2) | 39.75 mm |
| Secondary Bore Diameter (D) | 29.97 mm |
| Secondary Height (H) | 105.41 mm |
| Parameter | Measurement |
|---|---|
| Bore Diameter (D) | 1.181 in |
| Overall Height (H) | 4.153 in |
| Width of Outer Ring (B) | 0.927 in |
| Outer Diameter (C) | 1.697 in |
| Inner Diameter (D) | 0.6267 in |
| Width of Inner Ring (D2) | 0.4724 in |
| Height of Seating (S2) | 1.565 in |
| Secondary Bore Diameter (D) | 1.18 in |
| Secondary Height (H) | 4.15 in |
Applicable Machines and Industries
Here’s a detailed explanation for the suitability, function, and interchangeable brands or series for the WB1630105.5 Mud Pump Bearing:
Machines Suitable for WB1630105.5 Mud Pump Bearing:
Mud Pumps
- Function: The WB1630105.5 bearing supports the rotating components of mud pumps, reducing friction and ensuring the stable operation of the pump under high-pressure conditions during drilling operations.
- Common Brands: Emsco, Gardner Denver, National Oilwell Varco (NOV), Weatherford
Oil and Gas Drilling Rigs
- Function: It is used to stabilize the mud pump shaft, supporting the mechanical rotation needed to circulate drilling fluids efficiently.
- Common Brands: National Oilwell Varco (NOV), Schlumberger, Halliburton
Mining Equipment
- Function: This bearing ensures smooth operation of the pumps that handle mud and slurry in mining applications, maintaining balance and reducing downtime in harsh environments.
- Common Brands: Sandvik, Caterpillar, Komatsu
Hydraulic Pump Systems
- Function: The WB1630105.5 bearing provides rotational support to shafts in hydraulic systems, enhancing reliability and minimizing wear in the pump operation.
- Common Brands: Parker Hannifin, Bosch Rexroth, Eaton
Function in These Machines:
- The WB1630105.5 Mud Pump Bearing plays a critical role by supporting the shafts and other rotating components in mud and hydraulic pumps. It ensures smooth rotation, minimizes friction, and absorbs the loads generated by heavy-duty operations such as drilling, mining, and fluid handling. The bearing is designed to handle high pressure and maintain alignment, which is essential for the efficient and reliable functioning of these machines in harsh and demanding environments.
Interchangeable Bearing Brands or Series:
- NSK
- Equivalent Bearing: 885123
- KOYO
- Equivalent Bearing: W6B085/WPB16105RS
- Amigo
- Equivalent Bearing: WB1630105.5
- Timken
- Equivalent Bearing: 2631WB
- SKF
- Equivalent Bearing: BB1-0508
Summary:
The WB1630105.5 Mud Pump Bearing is suitable for use in mud pumps, oil drilling rigs, and mining equipment, where it plays a vital role in supporting high-pressure operations. The bearing can be interchanged with several leading brands like NSK, KOYO, and SKF, making it a versatile and reliable option for heavy-duty industrial applications.
WB1630105.5 Bearing Cross Reference and Interchange
| Brand | Equivalent Model |
|---|---|
| RHP | FPS-106 |
| KOYO | WPB16105 |
| Amigo | WB1630105.5 |
| NSK | BWF30-15-A-RR6 |
| SKF | 395987 |
This table provides both the dimensions and the interchange guide for the WB1630105.5 Mud Pump Bearing, making it easier to find compatible bearings from different manufacturers.
Choosing the Right Bearing
Here is a suggestion for the product comparison module, highlighting the Amigo WB1630105.5 Mud Pump Bearing and comparing it to other similar models. This comparison will help users understand when to choose the Amigo WB1630105.5 bearing and its key advantages.
Advantages of Amigo WB1630105.5 Over Other Bearings:
- Longer Service Life: The advanced sealing and materials used in the Amigo bearing ensure it lasts longer than many standard models, making it ideal for high-demand applications.
- Higher Load Capacity: With enhanced dynamic and static load ratings, it is more suitable for operations that experience heavy loads or vibrations.
- Lower Maintenance Costs: Due to its pre-lubricated, high-performance grease and durable design, the Amigo WB1630105.5 requires less frequent maintenance, reducing overall operational costs.
- Competitive Price: Despite its high-quality features, the Amigo WB1630105.5 is offered at a lower price point, providing better value for money compared to other well-known brands.
This comparison module highlights the strengths of the Amigo WB1630105.5 Mud Pump Bearing in contrast to other competing models, helping customers make an informed decision. Let me know if you need further modifications.
| Feature | Amigo WB1630105.5 Mud Pump Bearing | RHP FPS-106 Mud Pump Bearing | KOYO WPB16105 Mud Pump Bearing | NSK BWF30-15-A-RR6 Mud Pump Bearing | SKF 395987 Mud Pump Bearing |
|---|---|---|---|---|---|
| Material | High-Grade Steel | Standard Steel | High-Grade Steel | Standard Steel | High-Grade Steel |
| Load Capacity | Enhanced Dynamic and Static Load Ratings | Standard Load Ratings | High Load Capacity | Moderate Load Ratings | Enhanced Load Ratings |
| Durability | Extended Lifespan with Advanced Sealing | Standard Durability | Long Durability | Standard Durability | Extended Lifespan |
| Sealing Technology | Double-Lip Seals for Superior Protection | Single-Lip Seals | Double-Lip Seals | Single-Lip Seals | Advanced Sealing |
| Maintenance Intervals | Longer Intervals Due to Advanced Grease | Moderate Maintenance | Extended Intervals | Moderate Maintenance | Longer Intervals |
| Price | Competitive | Higher Price | Moderate Price | Moderate Price | Higher Price |
| Warranty | 2-Year Warranty | 1-Year Warranty | 1-Year Warranty | 1-Year Warranty | 2-Year Warranty |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo WB1630105.5 Bearings Are the Top Choice
"After switching to the Amigo WB1630105.5 Mud Pump Bearing, I have to say the performance is incredible. It operates just like the SKF bearings we've used for years. The durability is on par, and it handled our high-pressure mud pumps with ease. We noticed smoother operation and less downtime since we installed it. This bearing has proven itself in our drilling operations!"
Jacey Treutel
"We recently installed the Amigo WB1630105.5 Mud Pump Bearing in our mining equipment, and I must admit, the results have been impressive. It feels very similar to other premium brands like KOYO and SKF. The installation was easy, and the bearing has been working flawlessly. We've had no issues with performance, and it's already outlasting some of the previous bearings we used."
Ceasar Stokes
"The Amigo WB1630105.5 Mud Pump Bearing performed beyond expectations in our hydraulic systems. I was initially skeptical since we usually go with NSK bearings, but honestly, this bearing feels just as good, if not better. The sealing is excellent, and it has handled the high loads and tough conditions just as well as any other top-brand bearing."
Aletha Purdy
"Using the Amigo WB1630105.5 Mud Pump Bearing has been a great decision for our oil rig equipment. We’ve used SKF bearings for years, and this one performs almost identically. The load capacity and sealing quality are top-notch, and we’re extremely happy with the reduced maintenance downtime. Highly recommend this bearing for anyone looking for premium quality without the premium price tag."
Emily R.
