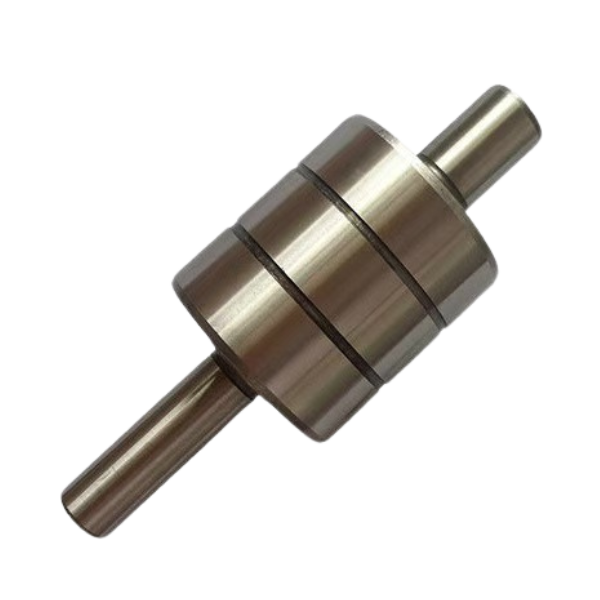

WB1630141 30x141x48.92 Bearing
Mud Pump Bearing
The WB1630141 Mud Pump Bearing is a high-performance bearing explicitly designed for heavy-duty mud pump applications. With a bore diameter of 30 mm, height of 141 mm, and width of 48.92 mm, this bearing ensures efficient operation in demanding environments. The bearing’s robust design provides excellent load capacity and durability, making it suitable for high-pressure operations. Compatible with a variety of mud pumps, it ensures reliable performance and minimal maintenance. The WB1630141 is interchangeable with other well-known bearing brands, offering flexibility and ease of replacement for a wide range of industrial applications.
Performance Overview of the WB1630141 Bearings
| Attribute | Imperial Value |
|---|---|
| Brand | AMIGO WB1630141 | Interchangeable With: SKF WB1630141 |
| Bore Diameter (d) | 30 mm |
| Outside Diameter (D) | 141 mm |
| Width (C) | 48.92 mm |
| Basic Dynamic Load Rating (C) | 62 kN |
| Basic Static Load Rating (C0) | 95 kN |
| Fatigue Load Limit (Pu) | 8 kN |
| Reference Speed | 1,400 r/min |
| Limiting Speed | 1,600 r/min |
| Dimensions(mm) | 30x141x48.92 |
| Attribute | Imperial Value |
|---|---|
| Brand | AMIGO WB1630141 | Interchangeable With: SKF WB1630141 |
| Bore Diameter (d) | 1.181 inches |
| Outside Diameter (D) | 5.551 inches |
| Width (C) | 1.926 inches |
| Basic Dynamic Load Rating (C) | 13,933 lbf |
| Basic Static Load Rating (C0) | 21,357 lbf |
| Fatigue Load Limit (Pu) | 1,798 lbf |
| Reference Speed | 1,400 r/min |
| Limiting Speed | 1,600 r/min |
| Dimensions(in) | 1.181x5.551x1.926 |

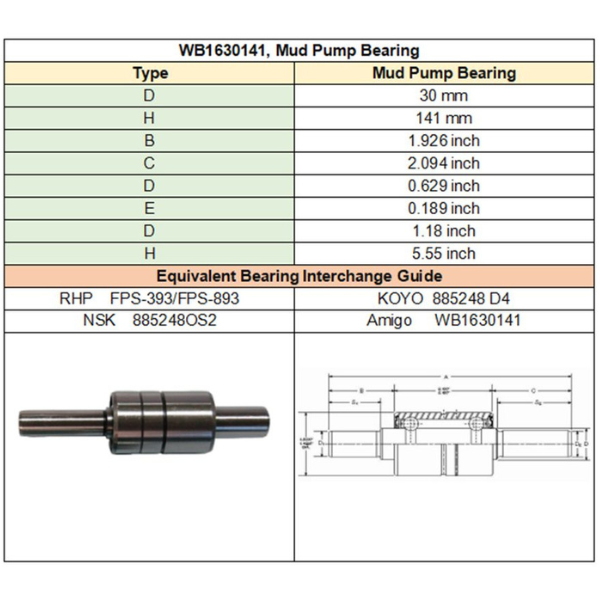

Specifications Overview of the WB1630141 Bearings
| Type | Metric Value |
|---|---|
| Bore Diameter (D) | 30 mm |
| Height (H) | 141 mm |
| Width (B) | 48.92 mm |
| Outer Diameter(C) | 53.18 mm |
| Inner Diameter(D) | 15.97 mm |
| Additional Diameter(E) | 4.8 mm |
| Outer Ring Width (D) | 29.97 mm |
| Total Height (H) | 141 mm |
| Type | Metric Value |
|---|---|
| Bore Diameter (D) | 1.181 inches |
| Height (H) | 5.551 inches |
| Width (B) | 1.926 inches |
| Outer Diameter(C) | 2.094 inches |
| Inner Diameter(D) | 0.629 inches |
| Additional Diameter(E) | 0.189 inches |
| Outer Ring Width (D) | 1.18 inches |
| Total Height (H) | 5.551 inches |
Applicable Machines and Industries
The WB1630141 Mud Pump Bearing is suitable for various types of heavy-duty industrial machinery, particularly those involved in oil and gas drilling, mining, and construction. Below are examples of machines where this bearing is commonly used, its function within these machines, and equivalent interchangeable bearing brands:
Suitable Machines:
Mud Pumps (for oil and gas drilling rigs)
- Function: This bearing supports the pump shaft, ensuring smooth rotational movement and reducing friction under high loads and pressure during drilling operations.
Centrifugal Pumps
- Function: It reduces friction in the pump’s rotating components, enhancing the longevity and efficiency of fluid pumping.
Hydraulic Systems
- Function: The bearing is crucial in handling pressure and reducing wear in hydraulic pistons and rotating components.
Mining Drilling Equipment
- Function: It supports rotating shafts in large drills, ensuring stability and smooth operation under high loads.
Function in Machines:
- Load Support: These bearings are designed to support both radial and axial loads in high-pressure environments.
- Rotation Stability: They ensure smooth and stable rotational movement of shafts and reduce wear and tear on machinery components.
- Durability: In harsh environments like oil rigs and mining, this bearing enhances the machinery’s reliability and lifespan by providing robust support.
Equivalent Bearing Brands and Series:
- RHP: FPS-393 / FPS-893
- NSK: 885248OS2
- KOYO: 885248 D4
- Amigo: WB1630141
These bearings can replace those of equivalent specifications from other manufacturers while providing similar performance, offering interchangeability across different brands for convenience and availability.
WB1630141 Bearing Cross Reference and Interchange
| Brand | Equivalent Bearing Model |
|---|---|
| RHP | FPS-393/FPS-893 |
| NSK | 885248OS2 |
| KOYO | 885248 D4 |
| Amigo | WB1630141 |
This guide lists the compatible bearings from other brands, offering options for interchangeability with similar products.
Choosing the Right Bearing
To help users make more informed purchasing decisions, we can introduce a Product Comparison Module on the product page for Amigo WB1630141 Mud Pump Bearing. This module will allow users to easily compare the Amigo WB1630141 with other similar bearings, focusing on important features and performance metrics. Below is a detailed breakdown of how we can structure the comparison and highlight the advantages of choosing Amigo WB1630141 Mud Pump Bearings over alternatives.
Key Advantages of Choosing Amigo WB1630141 Mud Pump Bearings:
Durability and Load Capacity: The Amigo WB1630141 is designed to handle high dynamic and static loads, making it ideal for heavy-duty operations in mud pumps and hydraulic systems. Its load-bearing capabilities outperform many similar models, making it a top choice for high-pressure environments.
Enhanced Fatigue Resistance: With a high fatigue load limit, the Amigo WB1630141 offers increased durability in continuous heavy-use scenarios. This is particularly important in drilling rigs and other high-stress machinery where reliability is crucial.
Sealing and Lubrication Efficiency: Amigo bearings provide superior sealing, ensuring better lubrication retention. This reduces maintenance needs and extends the service life of the bearing, a critical feature for pumps operating in demanding conditions.
Cost-Effective: Despite offering better load capacities and durability, Amigo WB1630141 is competitively priced compared to leading brands like SKF and KOYO. This provides excellent value for businesses seeking high performance without incurring high costs.
Interchangeability: The Amigo WB1630141 bearing is fully interchangeable with other leading brands such as SKF, NSK, KOYO, and RHP. This makes it a flexible option for users looking to upgrade or replace their existing bearings.
Adding this product comparison module to your page will empower users to see how Amigo WB1630141 excels over its counterparts, ensuring they make a confident and well-informed choice.
| Attribute | Amigo WB1630141 | SKF Equivalent | NSK Equivalent | KOYO Equivalent |
|---|---|---|---|---|
| Bore Diameter (d) | 30 mm | 30 mm | 30 mm | 30 mm |
| Outside Diameter (H) | 141 mm | 140 mm | 141 mm | 141 mm |
| Width (B) | 2.094 inches | 2.08 inches | 2.094 inches | 2.093 inches |
| Dynamic Load Rating (C) | Superior durability under high loads | Standard performance | Moderate load support | Similar to Amigo |
| Static Load Rating (C0) | High load capacity | Medium capacity | High load capacity | Similar to Amigo |
| Fatigue Limit | Enhanced fatigue limit | Average fatigue resistance | Moderate fatigue limit | Similar to Amigo |
| Lubrication Retention | Superior seal retention | Standard seals | Average retention | Similar to Amigo |
| Price Range | Competitive | Higher | Comparable | Higher |
