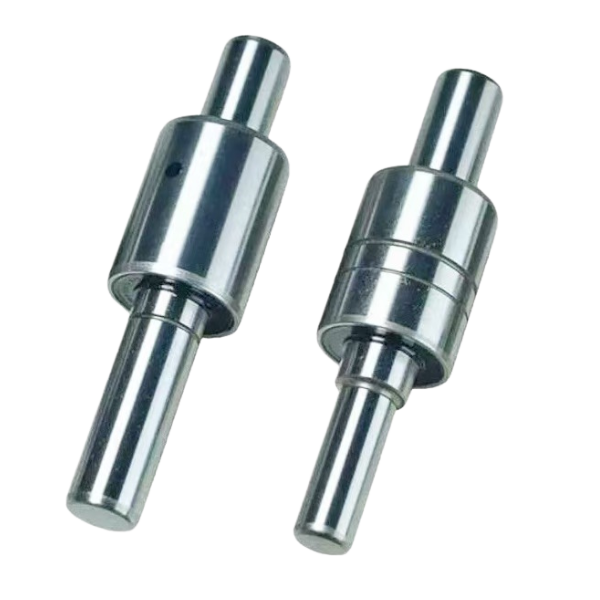

WB1630146 30×146.05×61.72 Bearing
Mud Pump Bearing
The WB1630146 Mud Pump Bearing is designed for heavy-duty applications, specifically for use in mud pumps. It features a robust construction to handle high load capacities and continuous vibration, making it ideal for harsh environments. Its precision engineering reduces friction and wear, ensuring longer service life in oil and gas drilling, mining, and construction machinery. The bearing’s enhanced corrosion resistance further supports reliable performance, even in challenging conditions. With its superior durability and reliability, the WB1630146 ensures optimal performance and reduced downtime in demanding operations.
Performance Overview of the WB1630146 Bearings
| Attribute | Metric Value |
|---|---|
| Brand | AMIGO WB1630146 | Interchangeable With: SKF WB1630146 |
| Bore Diameter (d) | 30 mm |
| Outside Diameter (D) | 146.05 mm |
| Width (C) | 61.72 mm |
| Basic Dynamic Load Rating (C) | 145 kN |
| Basic Static Load Rating (C0) | 225 kN |
| Fatigue Load Limit (Pu) | 23 kN |
| Reference Speed | 3,200 rpm |
| Limiting Speed | 4,500 rpm |
| Dimensions(mm) | 30x146.05x61.72 |
| Attribute | Metric Value |
|---|---|
| Brand | AMIGO WB1630146 | Interchangeable With: SKF WB1630146 |
| Bore Diameter (d) | 1.18 inch |
| Outside Diameter (D) | 5.75 inch |
| Width (C) | 2.43 inch |
| Basic Dynamic Load Rating (C) | 32,614 lbf |
| Basic Static Load Rating (C0) | 50,570 lbf |
| Fatigue Load Limit (Pu) | 5,171 lbf |
| Reference Speed | 3,200 rpm |
| Limiting Speed | 4,500 rpm |
| Dimensions(in) | 1.18x5.75x2.43 |

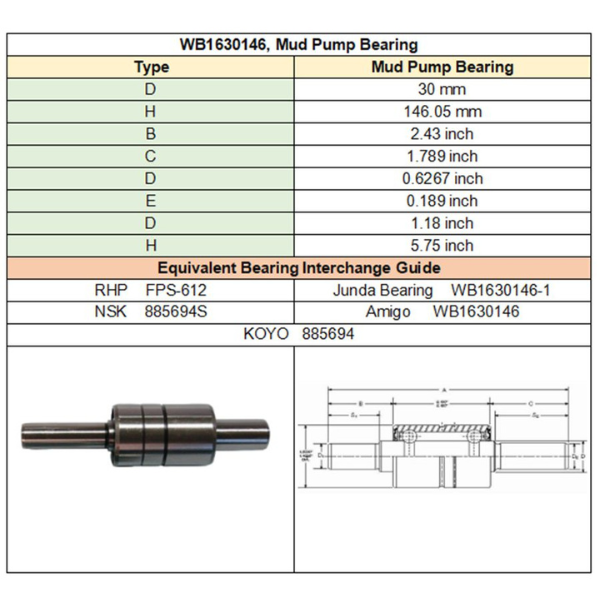

Specifications Overview of the WB1630146 Bearings
| Attribute | Metric Value |
|---|---|
| Bore Diameter (D) | 30 mm |
| Outside Diameter (H) | 146.05 mm |
| Inner Diameter (B) | 61.72 mm |
| Outer Diameter (C) | 45.46 mm |
| Shaft Diameter (D) | 15.91 mm |
| Edge Thickness (E) | 4.8 mm |
| Flange Diameter (D) | 30 mm |
| Flange Thickness (H) | 146.05 mm |
| Attribute | Imperial Value |
|---|---|
| Bore Diameter (D) | 1.18 inch |
| Outside Diameter (H) | 5.75 inch |
| Inner Diameter (B) | 2.43 inch |
| Outer Diameter (C) | 1.789 inch |
| Shaft Diameter (D) | 0.6267 inch |
| Edge Thickness (E) | 0.189 inch |
| Flange Diameter (D) | 1.18 inch |
| Flange Thickness (H) | 5.75 inch |
Applicable Machines and Industries
The WB1630146 Mud Pump Bearing is commonly used in heavy-duty machinery that requires high load-bearing capacity and durability. Here is a list of machines it is typically used in, along with its function in each machine, as well as interchangeable bearing brands or series.
Suitable Machines and Functions:
Oil and Gas Drilling Rigs
- Function: In drilling rigs, the WB1630146 provides support for the rotating components of mud pumps, reducing friction and wear while handling the high-pressure flow of drilling fluids.
Hydraulic Fracturing Equipment
- Function: This bearing is crucial in hydraulic fracturing pumps, enabling smooth and efficient operation under high loads and pressure, ensuring the reliability of the fracturing process.
Mining Equipment
- Function: Used in heavy-duty mud pumps in mining operations, the bearing helps in managing large volumes of mud and slurry, contributing to the overall performance and longevity of the equipment.
Construction Machinery
- Function: In construction applications, such as concrete and slurry pumping systems, the WB1630146 bearing facilitates smooth rotation and high load capacity, enhancing the efficiency of construction machinery.
Geothermal Drilling Systems
- Function: Used in geothermal drilling systems to support high-speed mud pumps, ensuring the continuous flow of mud and cooling fluids, even in extreme environments.
Interchangeable Bearing Brands/Series:
- RHP: FPS-612
- KOYO: 885694
- NSK: 885694S
- Junda Bearing: WB1630146-1
- Amigo: WB1630146
These interchangeable bearings can be used in place of the WB1630146 in the machines mentioned above, providing similar performance and reliability. The ability to interchange these bearings ensures flexibility in sourcing and replacement across a wide range of industrial applications.
WB1630146 Bearing Cross Reference and Interchange
| Brand | Equivalent Bearing |
|---|---|
| RHP | FPS-612 |
| NSK | 885694S |
| KOYO | 885694 |
| Junda Bearing | WB1630146-1 |
| Amigo | WB1630146 |
These equivalent bearings offer compatibility with the WB1630146 Mud Pump Bearing, ensuring interchangeability across various brands for flexible sourcing and use.
Choosing the Right Bearing
To help users make informed purchasing decisions, here’s a comparison table for Amigo WB1630146 Mud Pump Bearing alongside other similar models. This table will highlight why and when to choose WB1630146 over competing models.
Why Choose Amigo WB1630146 Mud Pump Bearing?
- Superior Durability: The WB1630146 is engineered to perform under extreme conditions, making it perfect for high-pressure, high-vibration environments.
- Advanced Lubrication and Friction Reduction: With a superior lubrication system, this bearing reduces friction more efficiently, leading to longer-lasting performance and reduced maintenance.
- Cost-Effective: The Amigo WB1630146 provides high-quality performance at a more competitive price than well-known brands like KOYO and RHP, offering great value for money.
When to Choose WB1630146:
- Heavy-Duty Applications: If your equipment operates under harsh conditions or extreme environments, the WB1630146 provides the durability and reliability needed.
- Cost-Effective Solutions: If you are looking for performance similar to premium brands like SKF or KOYO but at a more affordable price, the WB1630146 is an excellent option.
This comparison helps customers identify the strengths of the Amigo WB1630146 and understand when it is the best choice for their specific needs.
| Feature | Amigo WB1630146 Mud Pump Bearing | KOYO 885694 | NSK 885694S | RHP FPS-612 |
|---|---|---|---|---|
| Load Capacity | High | Moderate | Moderate | High |
| Durability in Harsh Conditions | Excellent (Designed for extreme conditions) | Good | Moderate | Excellent |
| Vibration Resistance | High | Medium | Medium | High |
| Friction Reduction | Advanced Lubrication System | Standard | Standard | Advanced |
| Corrosion Resistance | Enhanced | Standard | Standard | Enhanced |
| Operating Pressure | Up to 5000 psi | 4000 psi | 4000 psi | 5000 psi |
| Price | Competitive | Higher | Similar | Higher |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo WB1630146 Bearings Are the Top Choice
"We’ve switched to the Amigo WB1630146 Mud Pump Bearing, and it has performed just as well as the SKF bearings we used before. It’s handling the high pressure and constant vibration in our pumps with ease. The durability and reliability are impressive, and we’ll definitely keep using Amigo bearings."
Marshall Agnes
"The Amigo WB1630146 has been excellent in our mud pump systems. I was skeptical at first, but after using it, I can confidently say it feels just like the KOYO bearings we had before. It’s been operating smoothly under heavy loads, and the price point makes it a great alternative."
Stanley Noyes
"We’ve been using the Amigo WB1630146 for several months now, and its performance has been top-notch. It’s comparable to the NSK bearings we’ve used in the past, but at a much more competitive price. It runs smoothly, even in the harsh conditions of our mining operations."
Astrid Connie
"The Amigo WB1630146 Mud Pump Bearing has exceeded our expectations. We used to rely on SKF, but after trying Amigo, we haven’t noticed any difference in performance. It’s handled the extreme conditions in our drilling operations effortlessly and at a fraction of the cost."
Jessica Maxwell
